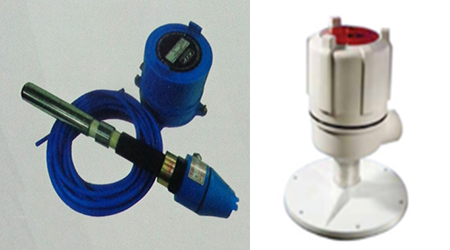

RF level switch is designed to provide accurate and reliable point level (High and Low level) information of solids (Powders and Lumps),Liquids and Slurry stored in vessels and tanks. The electronics consist of an oscillator ,a detector and an output relay which is controlled by the detector.

Applications: ESP Hoppers, Solid storage vessels, Liquid storage vessels, Chute Block Switch(CBS), Slurry

Provides High/Low Level Indication

Max Process Temperature up to 600 degree C

Rigid Probe 150mm to 800mm

Disc type Flush Mounted Probe

IP 66 Enclosure

Relay Contacts of Process Control

Max Process 40 bar Flexible Probe up to 5-6 metres

Multi Set Point with 2 & 3 Set Points Available

Integral Version Available
